Guidedwave’s software is custom-built to operate our guided wave inspection technologies and is designed to provide advanced functionality in an easy-to-use package.

Long-Range Pipe Inspection Software

Long-Range Pipe Inspection Software

The UltraWave LRT software was designed specifically to simplify and optimize the real-world guided wave pipe inspection process and is compatible with piezoelectric and magnetostrictive long-range pipe inspection collars. The user-friendly software provides a step-by-step wizard for carrying out an inspection job and manages tasks from job creation, to pipe description, to data collection and management. An interactive tree control organizes the entire inspection job database. Enhanced flaw evaluation is possible with the active and synthetic focusing routines to characterize the circumferential extent and location of flaws and pipe features. A full suite of analysis tools including distance amplitude correction (DAC) curves and reflector annotations can be used for a detailed analysis. Report generation algorithms automatically compile all of the necessary inspection data into a single, easily-modified Microsoft Word document.

Key Features

  • Compatible with piezoelectric and magnetostrictive long-range pipe inspection collars
  • User-friendly software provides a step-by-step wizard for entering the inspection parameters
  • Improved database management through data tree control
  • Rapid comprehensive data collection routines
  • Compatible with both piezoelectric and magnetostrictive collars
  • Improved display technology for initial analysis, F-Scan Colormap
  • Multiple advanced display technologies for collected data
  • Advanced synthetic and active focusing algorithms
  • Data versioning and corruption verification routines to ensure data integrity
  • Quick report generation of analyzed data through the tree control

For more information on the UltraWave LRT software, please visit Olympus’ product page here.

Learn More

Guided Wave Phased Array Software

Guided Wave Phased Array Software

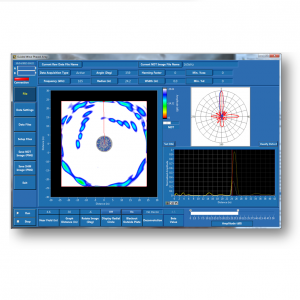

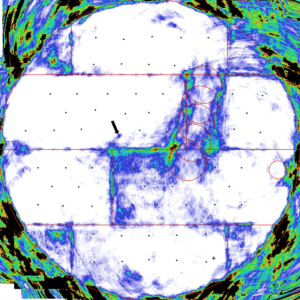

The GWPATM software is designed to make data collection, organization, and analysis as simple as possible, with integrated database management, structural overlay drawings, smart artifact suppression technology, and automated composite image generation tools to compile multiple GS-scans into a single, easy-to-interpret large-area image overlaid on your structural drawing.

Key Features

  • User-friendly interface design
  • Advanced synthetic and active focusing algorithms
  • Rapid radar plot display for active focusing
  • Advanced signal analysis and display processing routines
  • Software supports both NDT and SHM techniques
Learn More

Medium-Range Pipe Inspection Software

Medium-Range Pipe Inspection Software

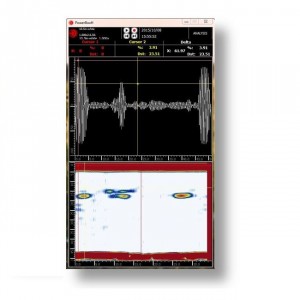

The MRUT software tab is available for the Innerspec PowerBox H platform and enhances the capabilities of this handheld scanning hardware platform to accommodate the MRUT probe offered by Guidedwave. The MRUT tab allows the user to easily set up medium-range guided wave pipe scanning jobs, calibrate the probe, and collect and analyze B-scan data.

Key Features

  • The MRUT software operates within Innerspec’s PowerBox H handheld scanning hardware platform
  • User-friendly interface designed to make job setup quick and easy
  • Fast frequency analysis (FFA) frequency sweep calibration tools
  • Encoder-based B-scan data collection for guided wave MRUT scans
  • Advanced SAFT processing algorithms to enhance scan resolution
Learn More

Guidedwave Workstation R&D/Laboratory Software

Guidedwave Workstation R&D/Laboratory Software

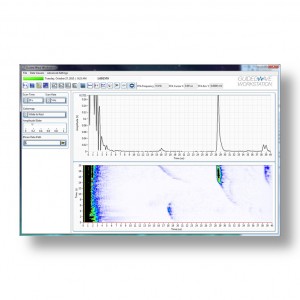

Guidedwave Workstation software was developed to be a complete guided wave research and development platform for laboratory and field trial use. The software is compatible with the UltraWave LRT phased array and Seeker multiplexed data acquisition hardware platforms. Advanced data acquisition and display routines cover a wide range of guided wave applications. The included signal processing and measurement tools provide a wide array of options and excellent functionality and flexibility for guided wave data collection and analysis. The Workstation software is also compatible with traditional bulk wave UT transducers and applications.

Key Features

  • Software is compatible with the UltraWave LRT phased array and Seeker multiplexed data acquisition hardware platforms
  • Real-time scope (RF) display
  • Real-time power spectral density (FFT) display
  • Fast frequency analysis (FFA) frequency-sweep routines
  • Timed B-scan display
  • Advanced signal processing and display routines including signal, FFA, and B-scan viewer and comparison tools
